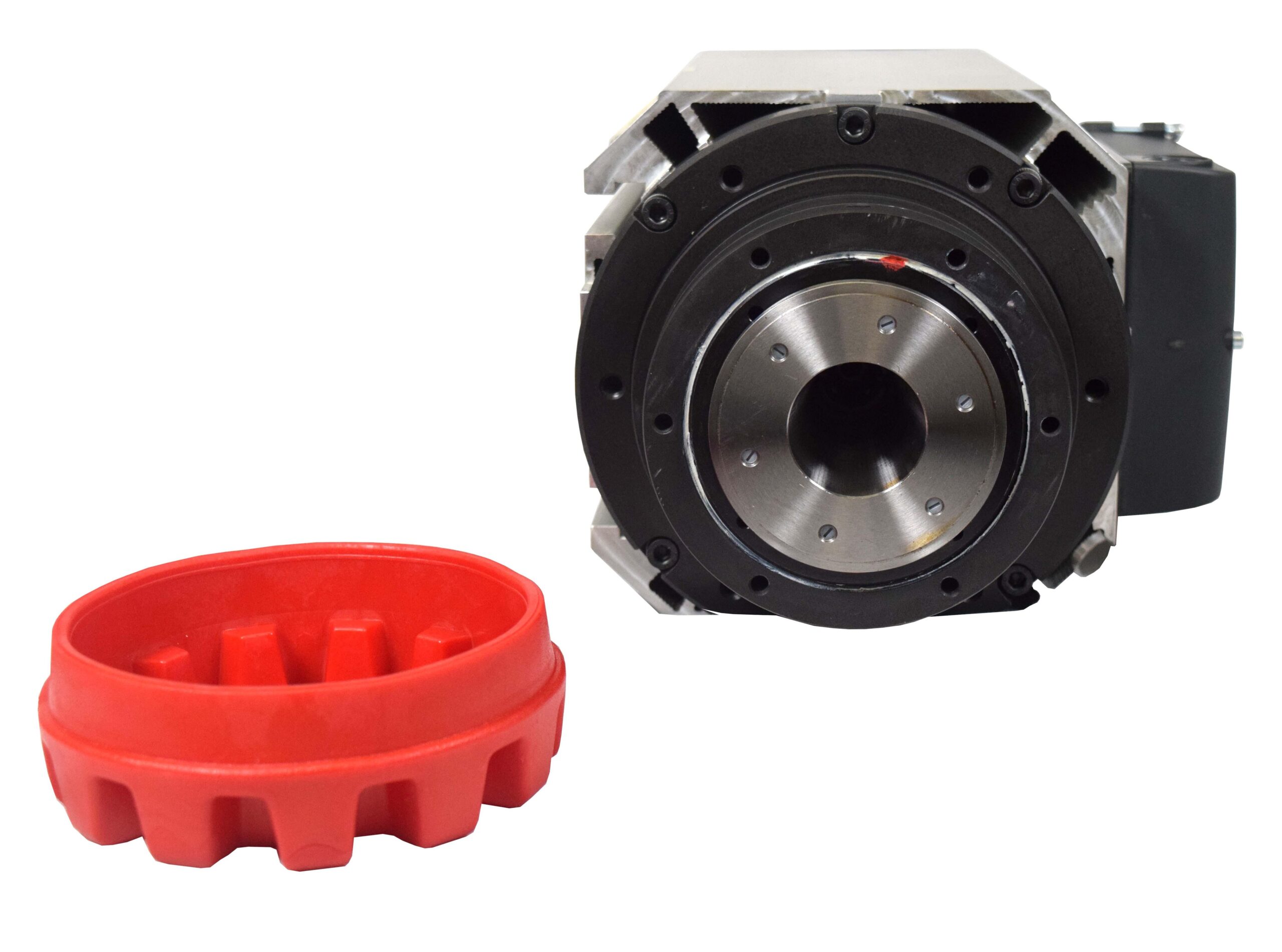

6HP HSD Automatic Tool Change (ATC) SPINDLE, 220/380 delivers a seamless blend of power, precision, and versatility to your production process.
Specs:
Model:ES950A – H6161H1696
Weight:22.0 kg
Drawing:H6161
Rated Current:14.7 / 8.5 Amp
Rated Power (S1):3.8 kW
Number of Poles:2
Rated Power (S6):4.5 kW
Insulation Class:F
HP:5.0
IP class:54
Refrigeration:Electric Fan
Front Bearings: Super-precision ceramic
Tool Fixation:ISO30
Rear Bearings: Super-precision ceramic
Rated Frequency:200/400 Hz
Voltage:220/380 V
Nominal Rotation12,000/24,000 RPM

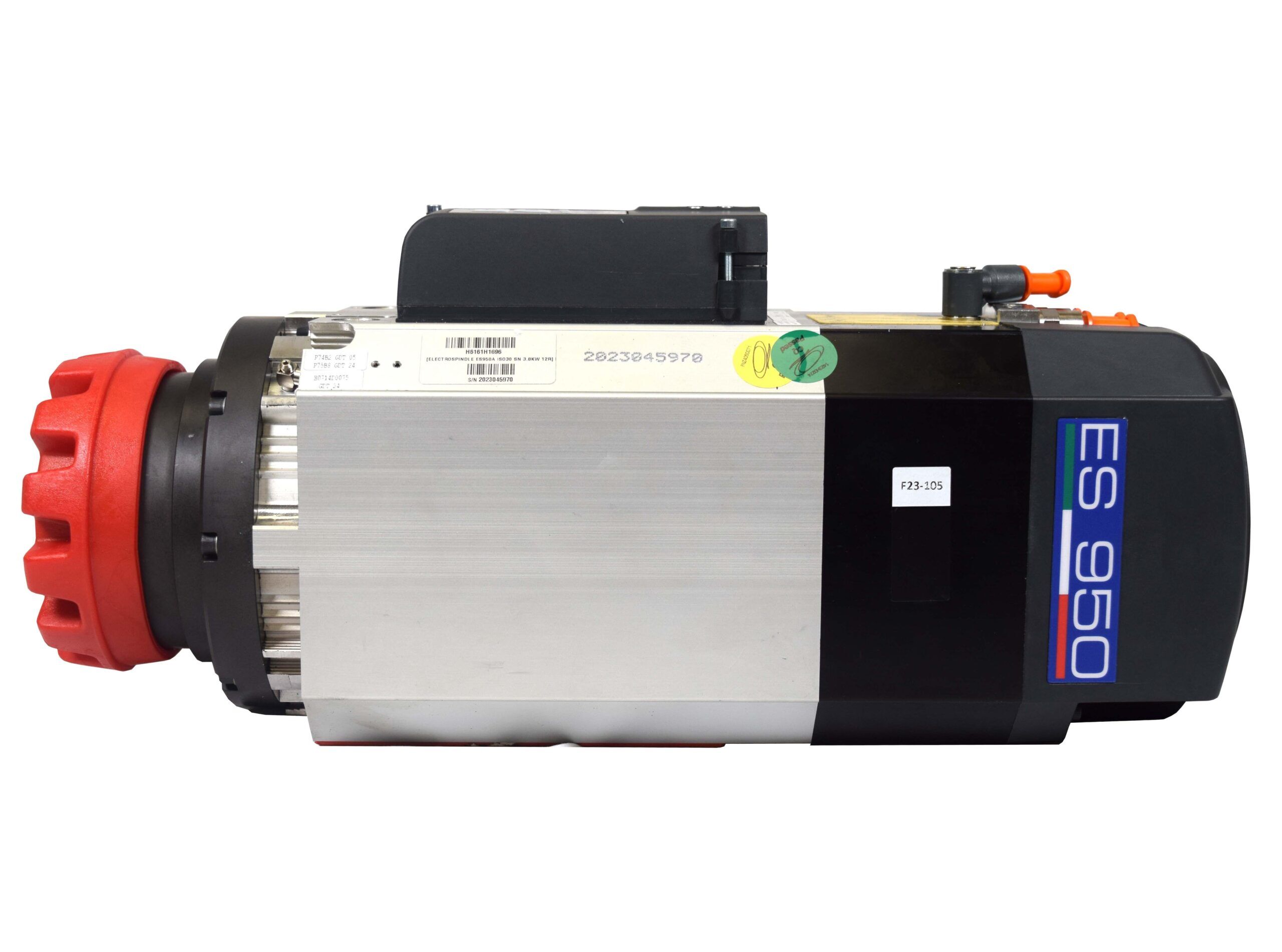

CNC Machine 6HP HSD ATC SPINDLE, 220/380V – ES950A
5HP HSD ATC SPINDLE, 220/380V – ES950A
$7,150.00
In stock
This product is currently sold out.
No worries! Enter your email, and we'll let you know as soon as it's back in stock or available for preorder.
70 in stock
